UB 914x305x474
Universal Beams
refer to : EN 10365:2017
a European standard that defines the dimensions, tolerances, and sectional properties for hot-rolled steel channels, I-beams, and H-beams used in construction and engineering. It ensures uniformity and compatibility across European structural steel products.

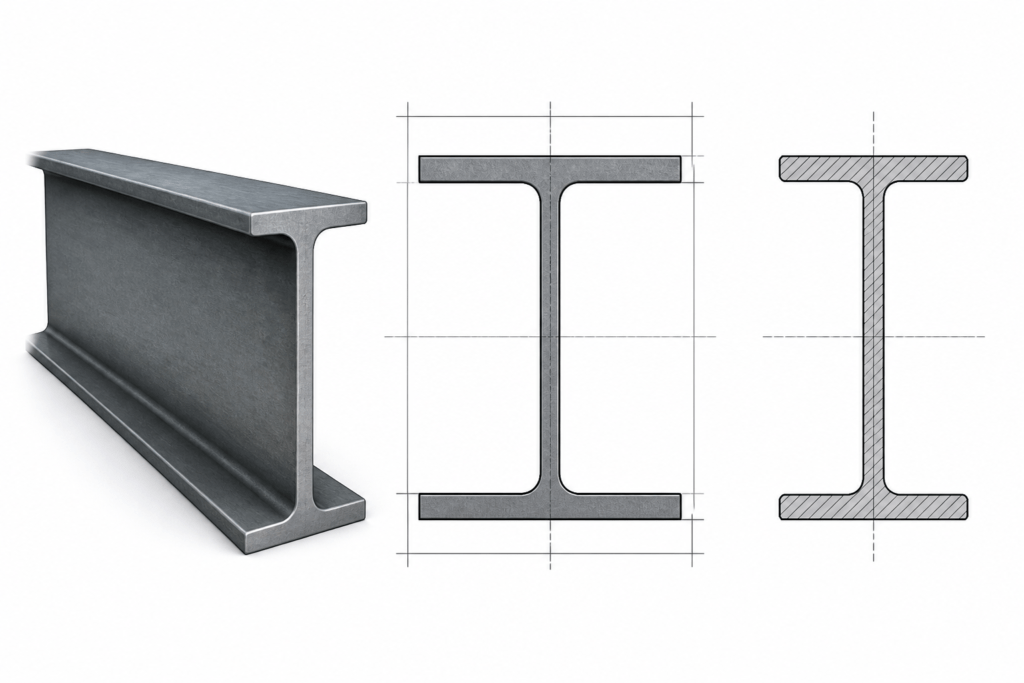

Dimension : 971x316x30x54.1
Depth : 971 mm
Width : 316 mm
Web Thickness : 30 mm
Flange Thickness : 54.1 mm

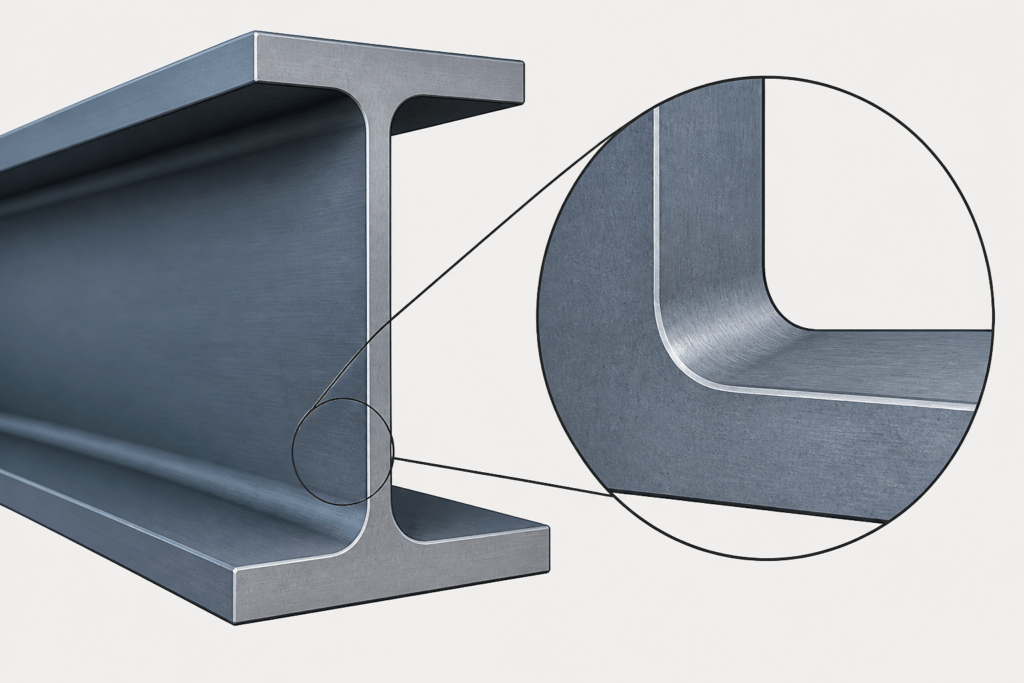

Root Fillet Radius : 19 mm
Sectional Area : 603.9 cm2
Unit Weight : 474.1 kg/m
