UB 920x420x491
Universal Beams
refer to : EN 10365:2017
a European standard that defines the dimensions, tolerances, and sectional properties for hot-rolled steel channels, I-beams, and H-beams used in construction and engineering. It ensures uniformity and compatibility across European structural steel products.

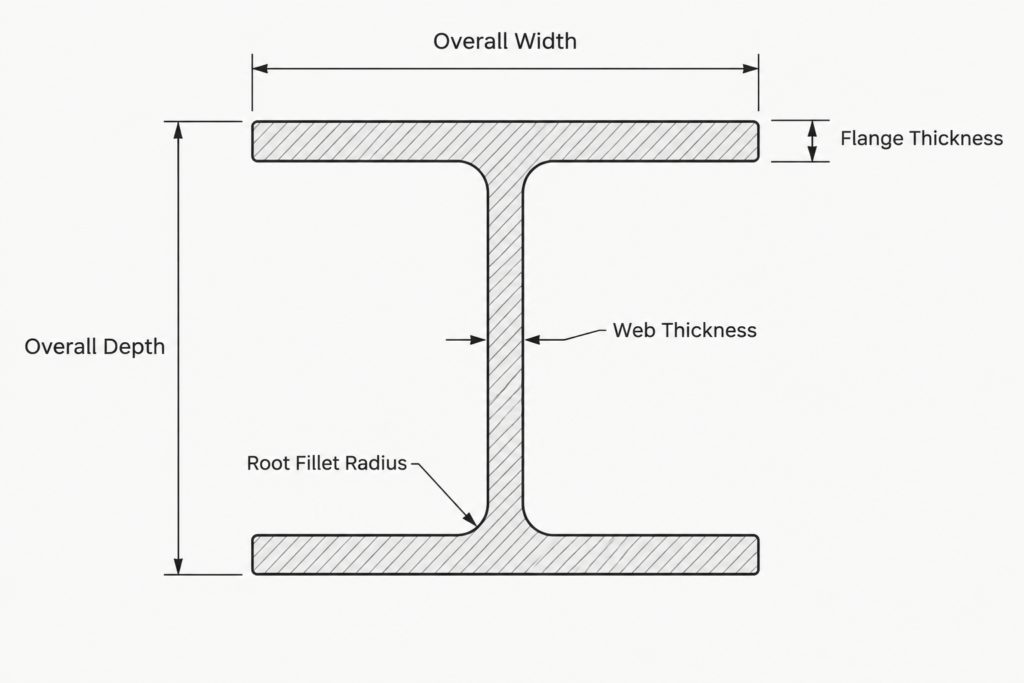

Dimension : 957x422x25.9×47
Depth : 957 mm
Width : 422 mm
Web Thickness : 25.9 mm
Flange Thickness : 47 mm
Root Fillet Radius : 19 mm
Sectional Area : 623.3 cm2
Unit Weight : 489.3 kg/m
UB 920x420x491
