UB 838x292x226
Universal Beams
refer to : EN 10365:2017
a European standard that defines the dimensions, tolerances, and sectional properties for hot-rolled steel channels, I-beams, and H-beams used in construction and engineering. It ensures uniformity and compatibility across European structural steel products.

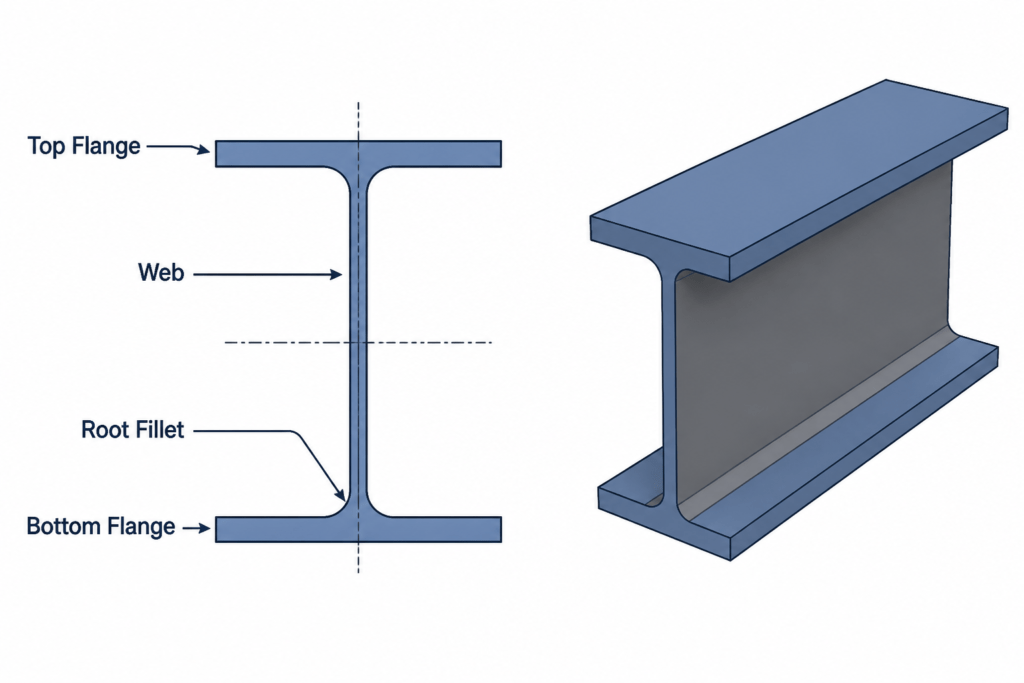

Dimension : 850.9×293.8×16.1×26.8
Depth : 850.9 mm
Width : 293.8 mm
Web Thickness : 16.1 mm
Flange Thickness : 26.8 mm
Root Fillet Radius : 18 mm
Sectional Area : 288.6 cm2
Unit Weight : 226.6 kg/m
