UB 610x305x149
Universal Beams
refer to : EN 10365:2017
a European standard that defines the dimensions, tolerances, and sectional properties for hot-rolled steel channels, I-beams, and H-beams used in construction and engineering. It ensures uniformity and compatibility across European structural steel products.

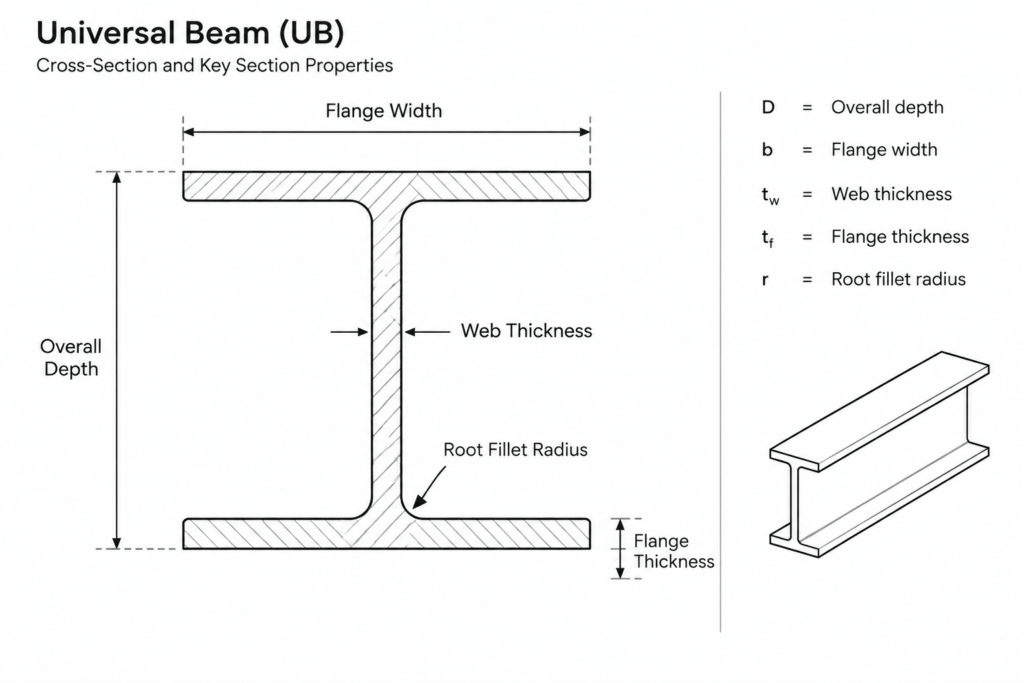

Dimension : 612.4×304.8×11.8×19.7
Depth : 612.4 mm
Width : 304.8 mm
Web Thickness : 11.8 mm
Flange Thickness : 19.7 mm

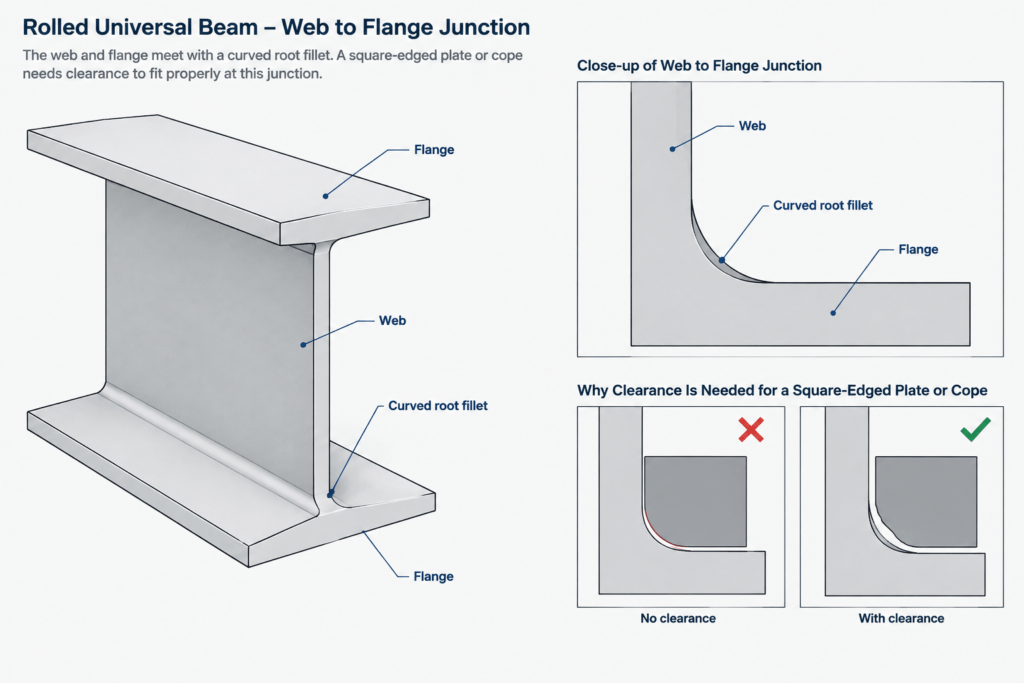

Root Fillet Radius : 17 mm
Sectional Area : 190 cm2
Unit Weight : 149.1 kg/m
UB 610x305x149
