UC 203x203x86

Written by

UC 203x203x86
Universal Columns
refer to : EN 10365:2017
a European standard that defines the dimensions, tolerances, and sectional properties for hot-rolled steel channels, I-beams, and H-beams used in construction and engineering. It ensures uniformity and compatibility across European structural steel products.

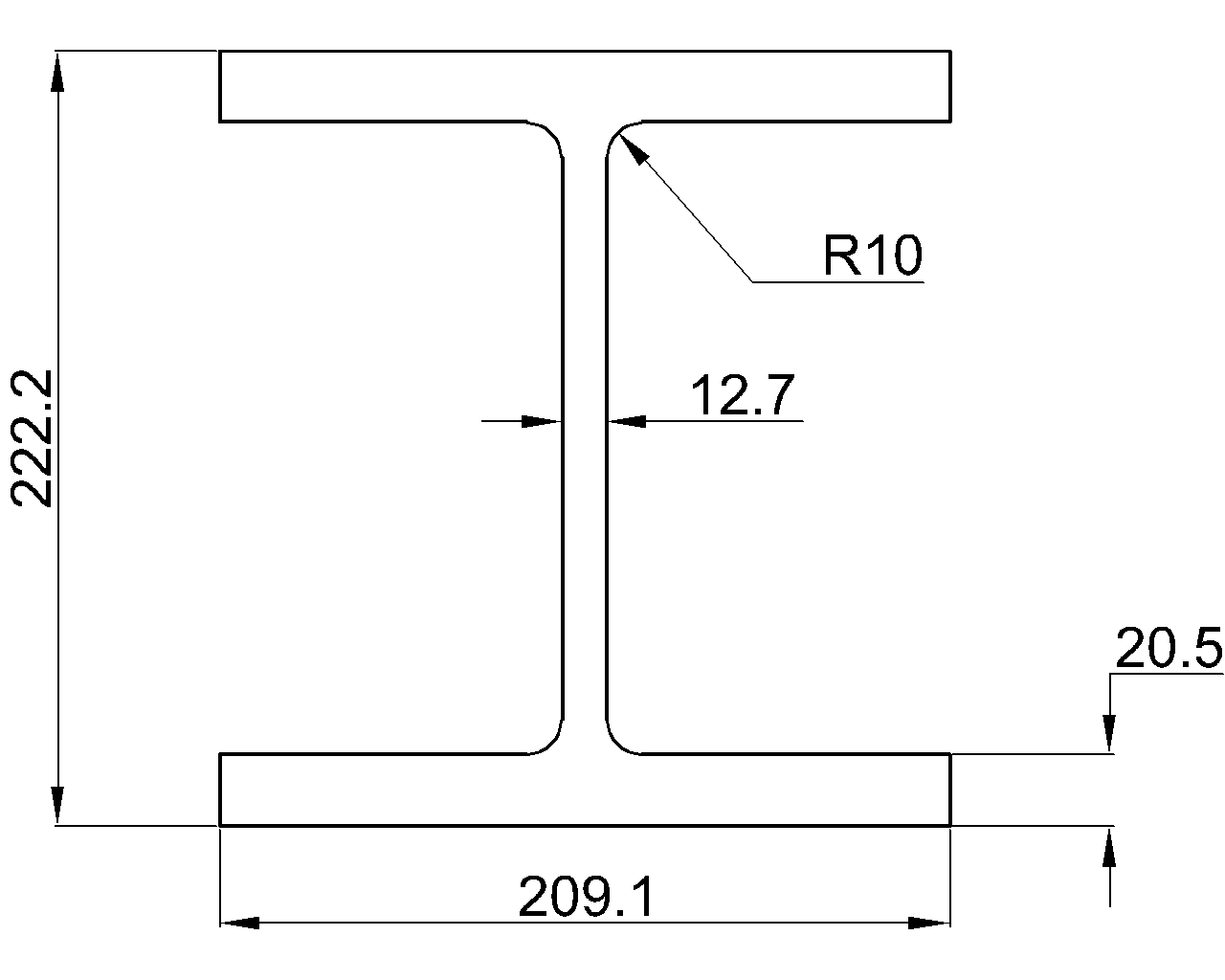

Dimension : 222.2×209.1×12.7×20.5
Depth : 222.2 mm
Width : 209.1 mm
Web Thickness : 12.7 mm
Flange Thickness : 20.5 mm
Root Fillet Radius : 10 mm
Sectional Area : 109.6 cm²
Unit Weight : 86 kg/m
