UB 686x254x125
Universal Beams
refer to : EN 10365:2017
a European standard that defines the dimensions, tolerances, and sectional properties for hot-rolled steel channels, I-beams, and H-beams used in construction and engineering. It ensures uniformity and compatibility across European structural steel products.

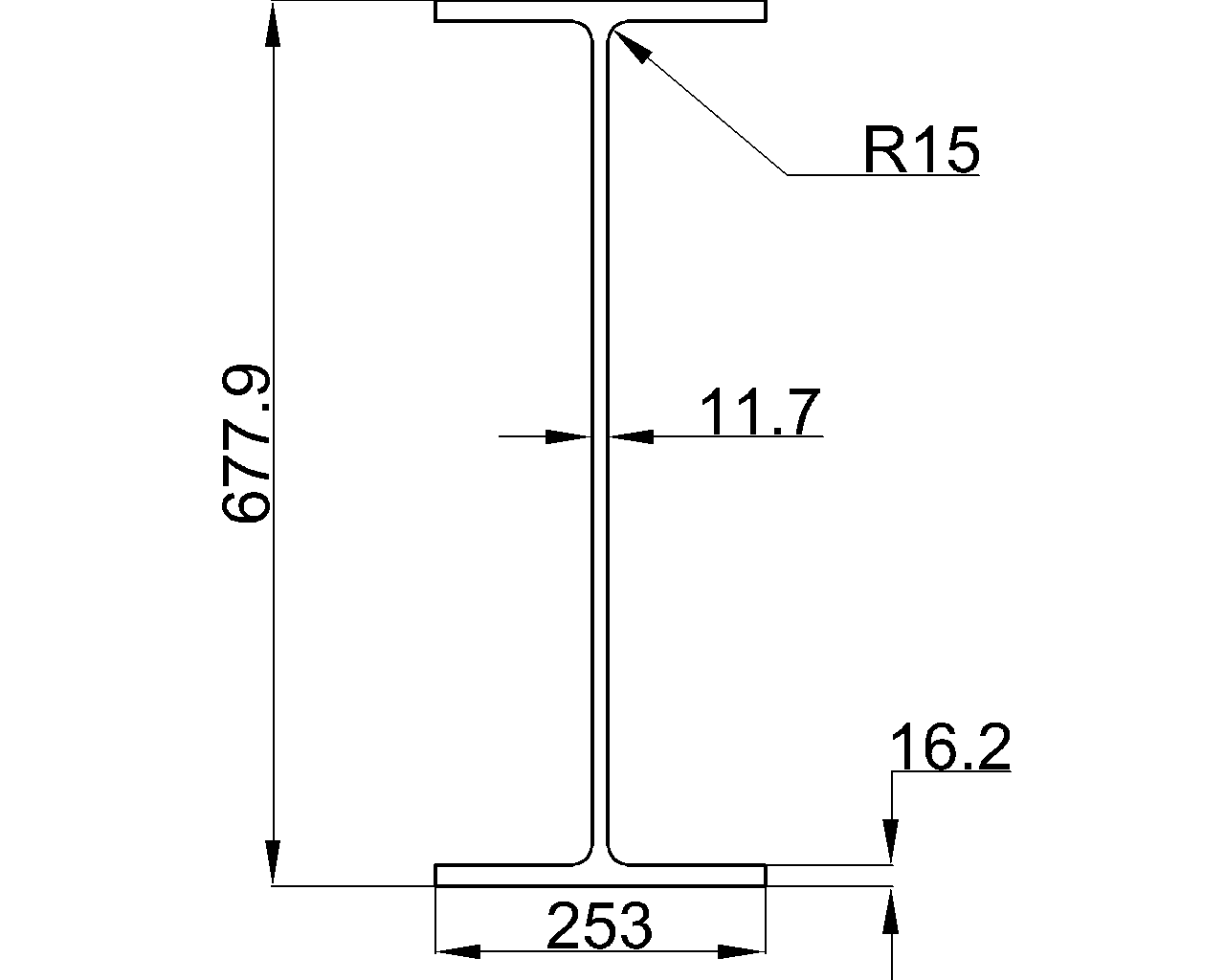

Dimension : 677.9x253x11.7×16.2
Depth : 677.9 mm
Width : 253 mm
Web Thickness : 11.7 mm
Flange Thickness : 16.2 mm
Root Fillet Radius : 15 mm
Sectional Area : 159.5 cm2
Unit Weight : 125.2 kg/m
UB 686x254x125
