UB 610x229x125
Universal Beams
refer to : EN 10365:2017
a European standard that defines the dimensions, tolerances, and sectional properties for hot-rolled steel channels, I-beams, and H-beams used in construction and engineering. It ensures uniformity and compatibility across European structural steel products.

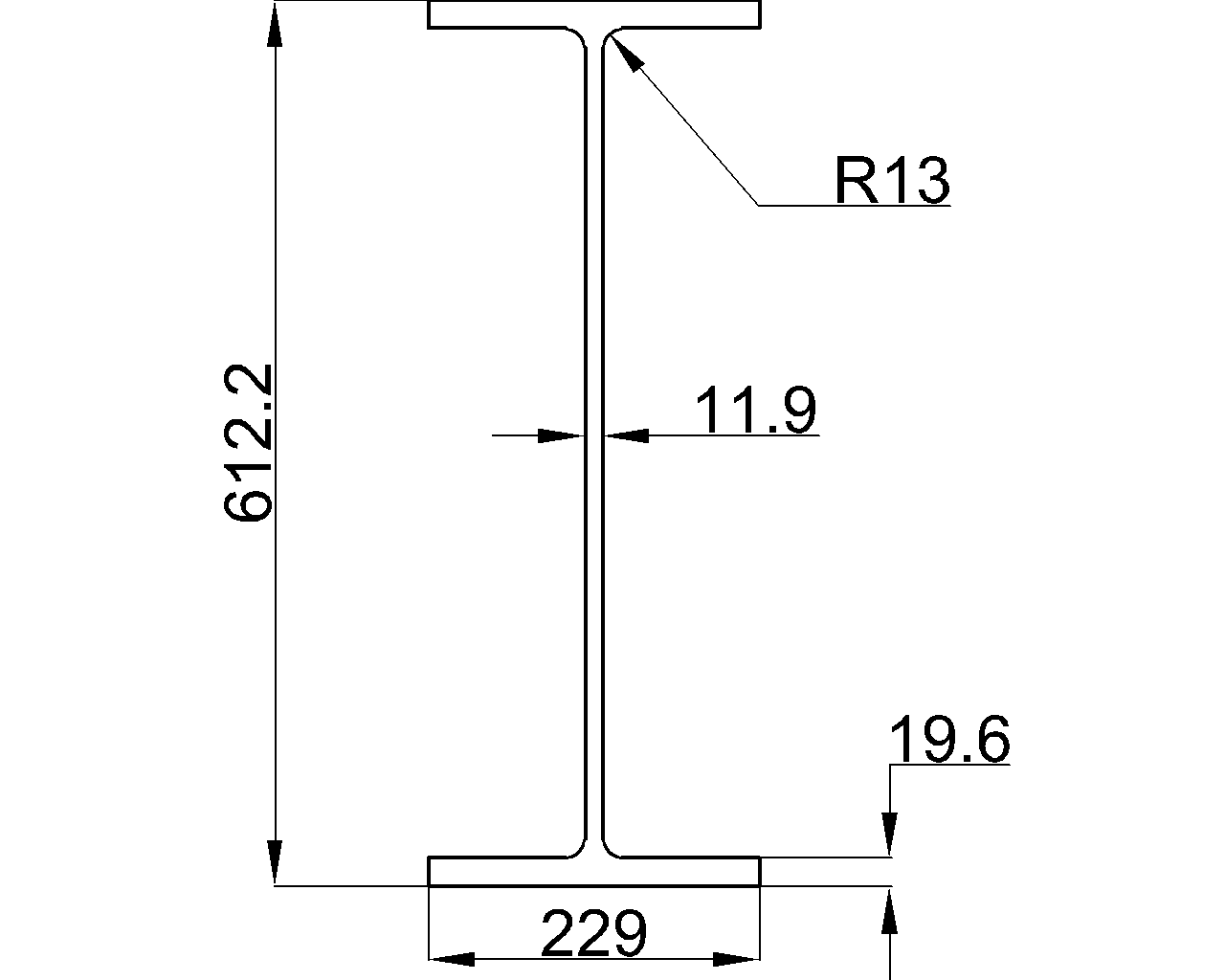

Dimension : 612.2x229x11.9×19.6
Depth : 612.2 mm
Width : 229 mm
Web Thickness : 11.9 mm
Flange Thickness : 19.6 mm
Root Fillet Radius : 13 mm
Sectional Area : 159.3 cm2
Unit Weight : 125.1 kg/m
UB 610x229x125
