UB 203x133x25
Universal Beams
refer to : EN 10365:2017
a European standard that defines the dimensions, tolerances, and sectional properties for hot-rolled steel channels, I-beams, and H-beams used in construction and engineering. It ensures uniformity and compatibility across European structural steel products.

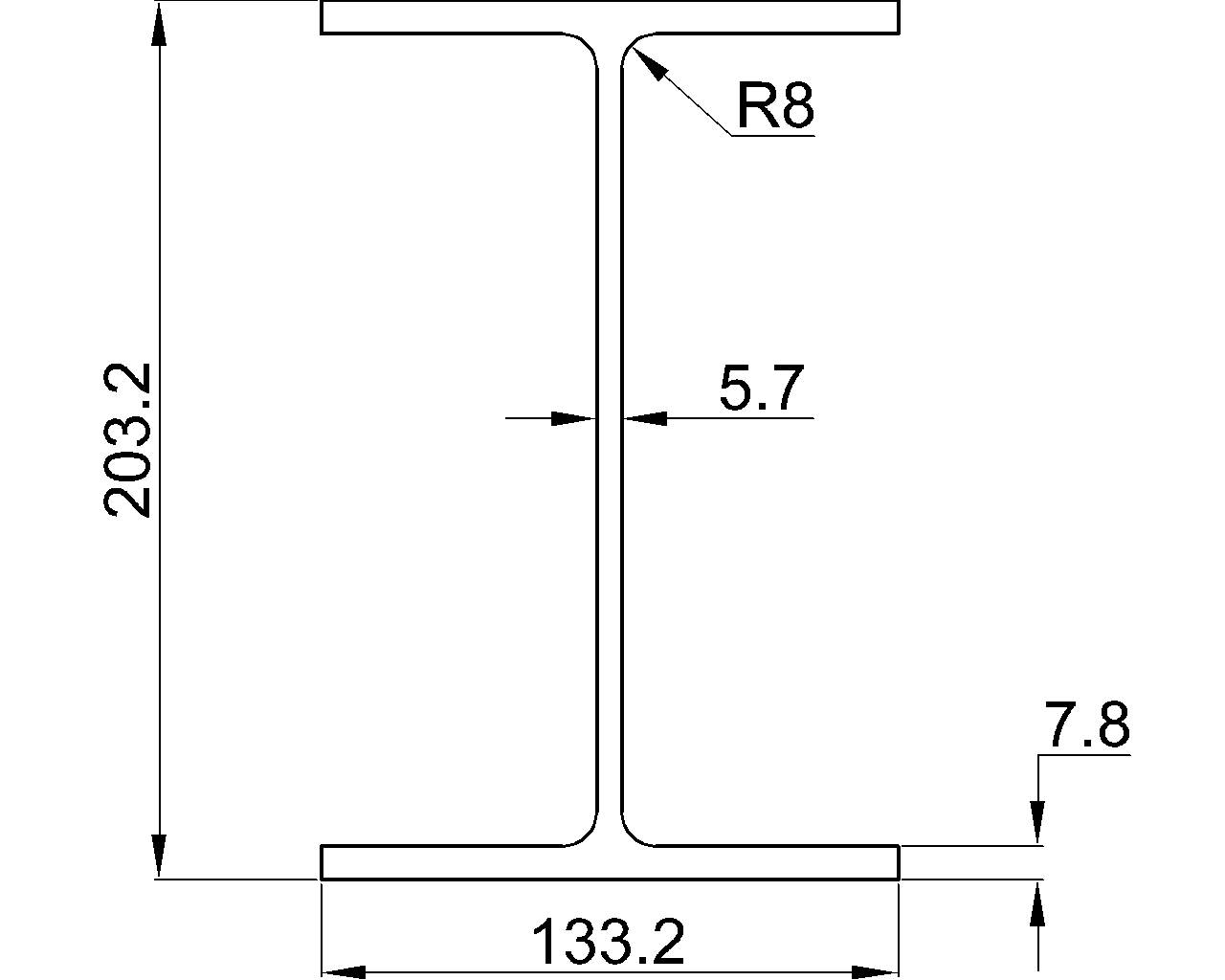

Dimension : 203.2×133.2×5.7×7.8
Depth : 203.2 mm
Width : 133.2 mm
Web Thickness : 5.7 mm
Flange Thickness : 7.8 mm
Root Fillet Radius : 8 mm
Sectional Area : 32 cm2
Unit Weight : 25.1 kg/m
UB 203x133x25
