SHS 220x220x10
Cold Formed Welded Square Steel Tubes
refer to : EN 10219-2
the European standard that specifies tolerances, dimensions, and sectional properties for cold-formed welded structural hollow sections made of non-alloy and fine grain steels. It complements EN 10219-1, which covers technical delivery conditions.

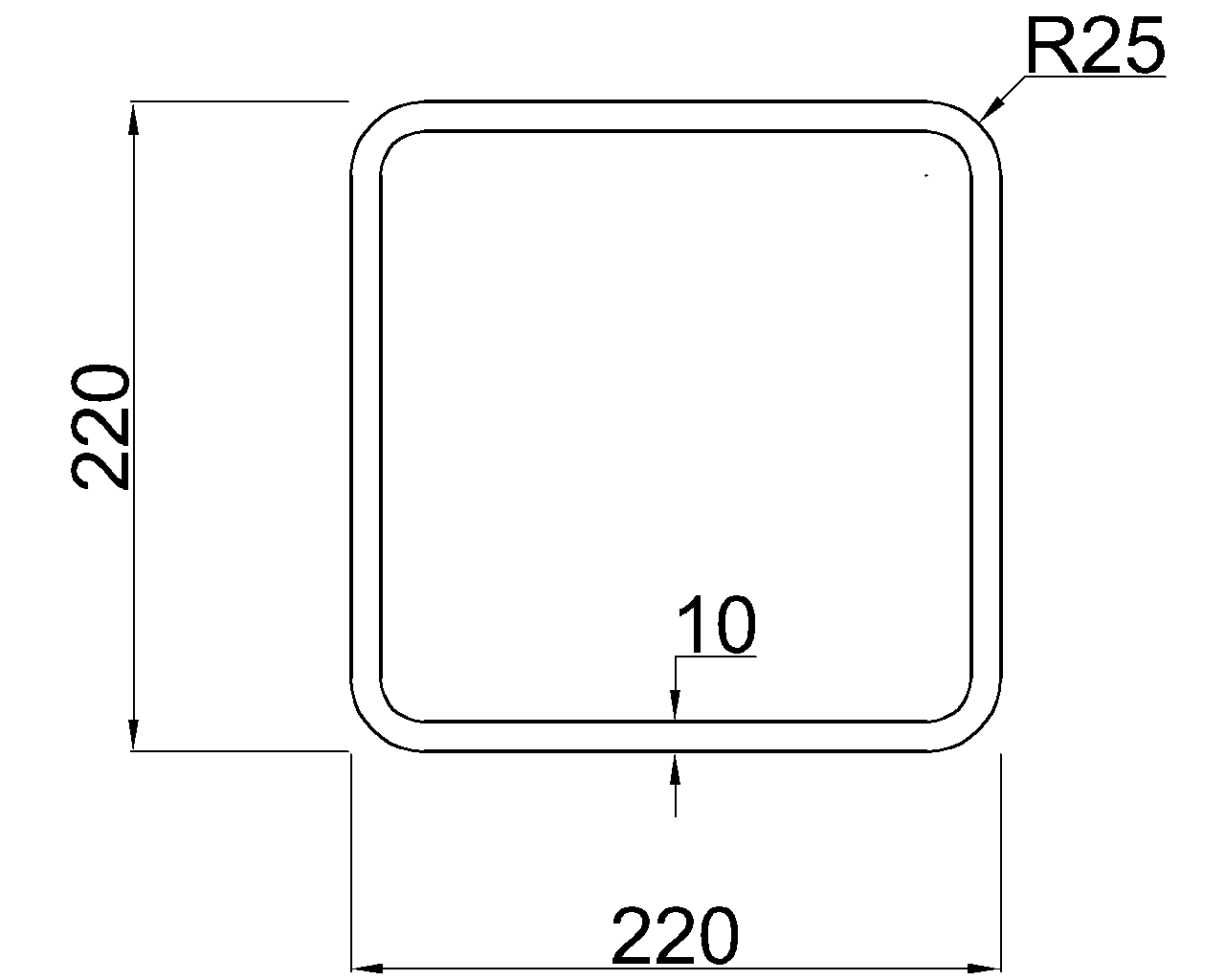

Dimension : 220x220x10
Depth : 220 mm
Width : 220 mm
Thickness : 10 mm
Outer Corner Radius : 25 mm
Inner Corner Radius : 15 mm
Sectional Area : 80.57 cm2
Unit Weight : 63.2 kg/m
SHS 220x220x10
