SHS 100x100x8
Cold Formed Welded Square Steel Tubes
refer to : EN 10219-2
the European standard that specifies tolerances, dimensions, and sectional properties for cold-formed welded structural hollow sections made of non-alloy and fine grain steels. It complements EN 10219-1, which covers technical delivery conditions.

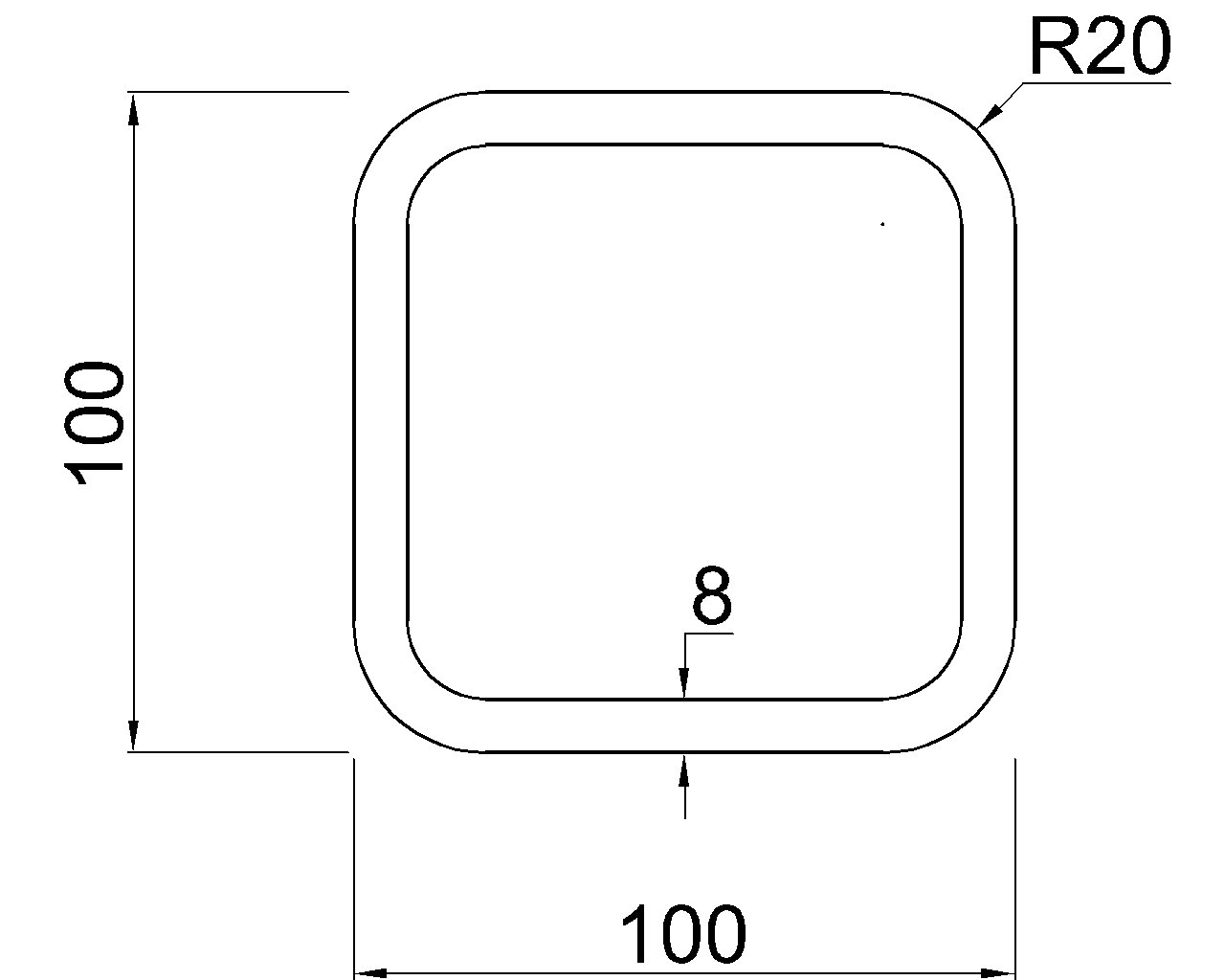

Dimension : 100x100x8
Depth : 100 mm
Width : 100 mm
Thickness : 8 mm
Outer Corner Radius : 20 mm
Inner Corner Radius : 12 mm
Sectional Area : 27.24 cm2
Unit Weight : 21.4 kg/m
SHS 100x100x8
