RHS 50x25x2.5
Cold Formed Welded Rectangular Steel Tubes
refer to : EN 10219-2
the European standard that specifies tolerances, dimensions, and sectional properties for cold-formed welded structural hollow sections made of non-alloy and fine grain steels. It complements EN 10219-1, which covers technical delivery conditions.

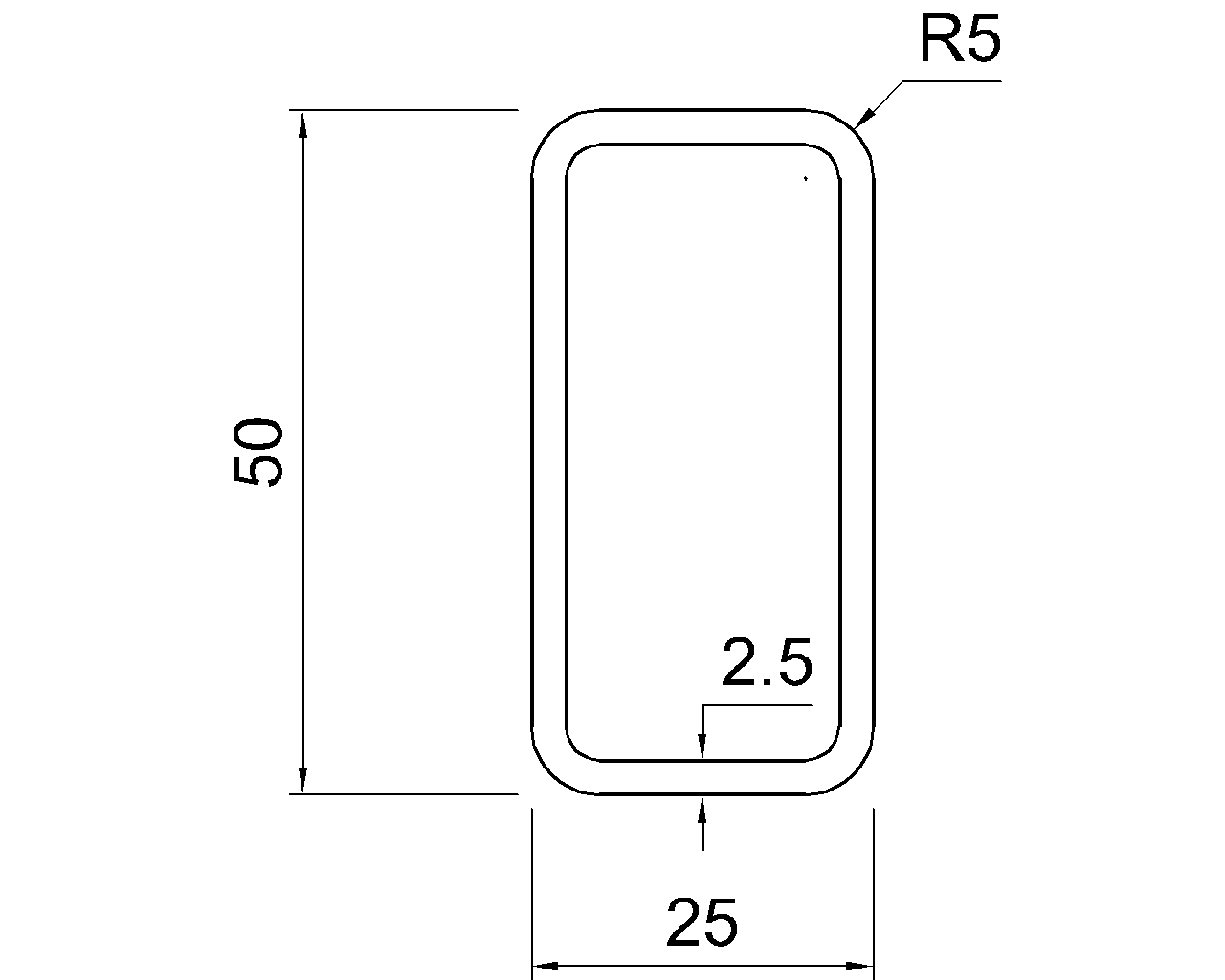

Dimension : 50x25x2.5
Depth : 50 mm
Width : 25 mm
Thickness : 2.5 mm
Outer Corner Radius : 5 mm
Inner Corner Radius : 2.5 mm
Sectional Area : 3.34 cm2
Unit Weight : 2.6 kg/m
RHS 50x25x2.5
