RHS 30x20x1.5
Cold Formed Welded Rectangular Steel Tubes
refer to : EN 10219-2
the European standard that specifies tolerances, dimensions, and sectional properties for cold-formed welded structural hollow sections made of non-alloy and fine grain steels. It complements EN 10219-1, which covers technical delivery conditions.

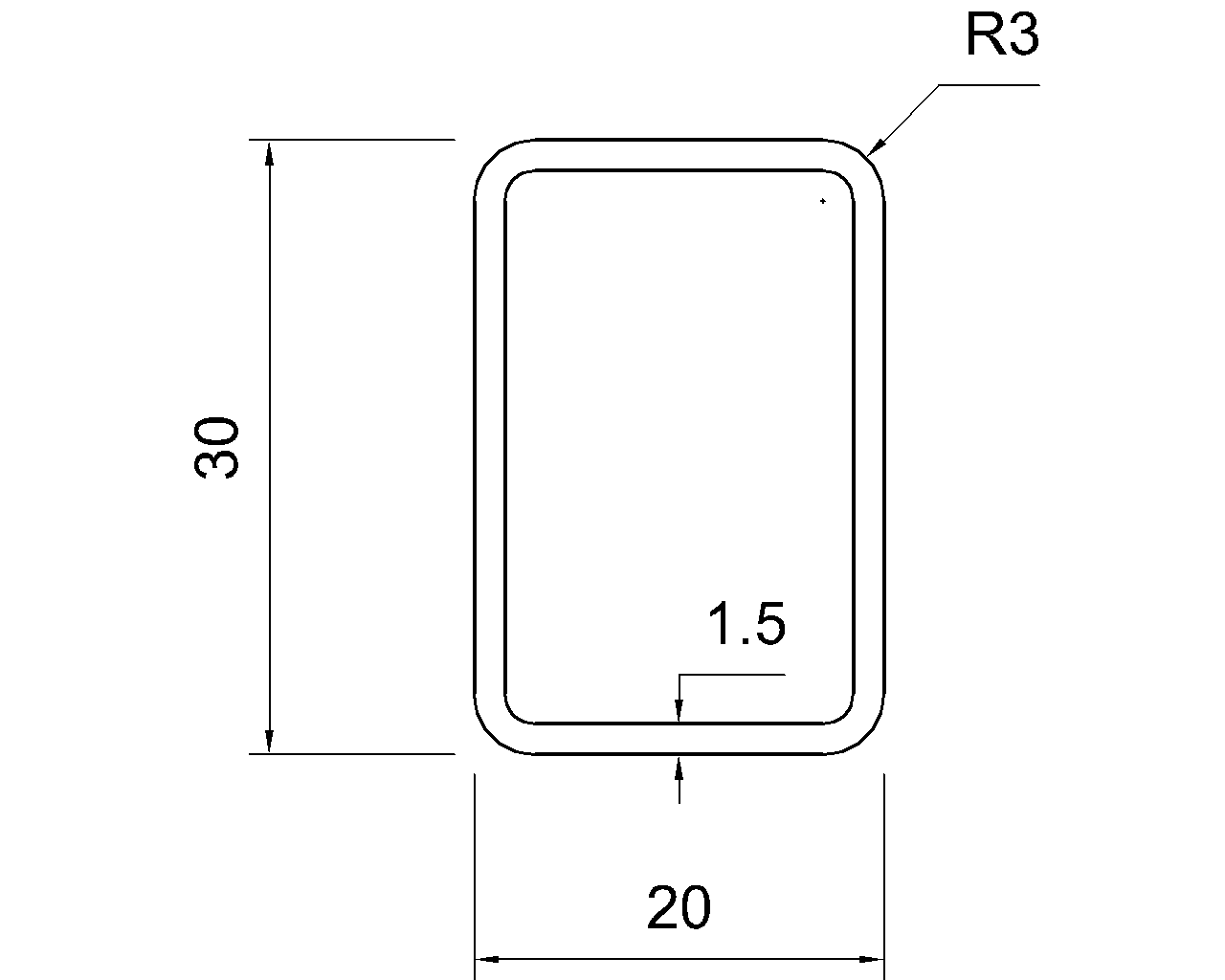

Dimension : 30x20x1.5
Depth : 30 mm
Width : 20 mm
Thickness : 1.5 mm
Outer Corner Radius : 3 mm
Inner Corner Radius : 1.5 mm
Sectional Area : 1.35 cm2
Unit Weight : 1.1 kg/m
