HE 360 A

HE 360 A
Wide Flange Beams
refer to : EN 10365:2017
a European standard that defines the dimensions, tolerances, and sectional properties for hot-rolled steel channels, I-beams, and H-beams used in construction and engineering. It ensures uniformity and compatibility across European structural steel products.

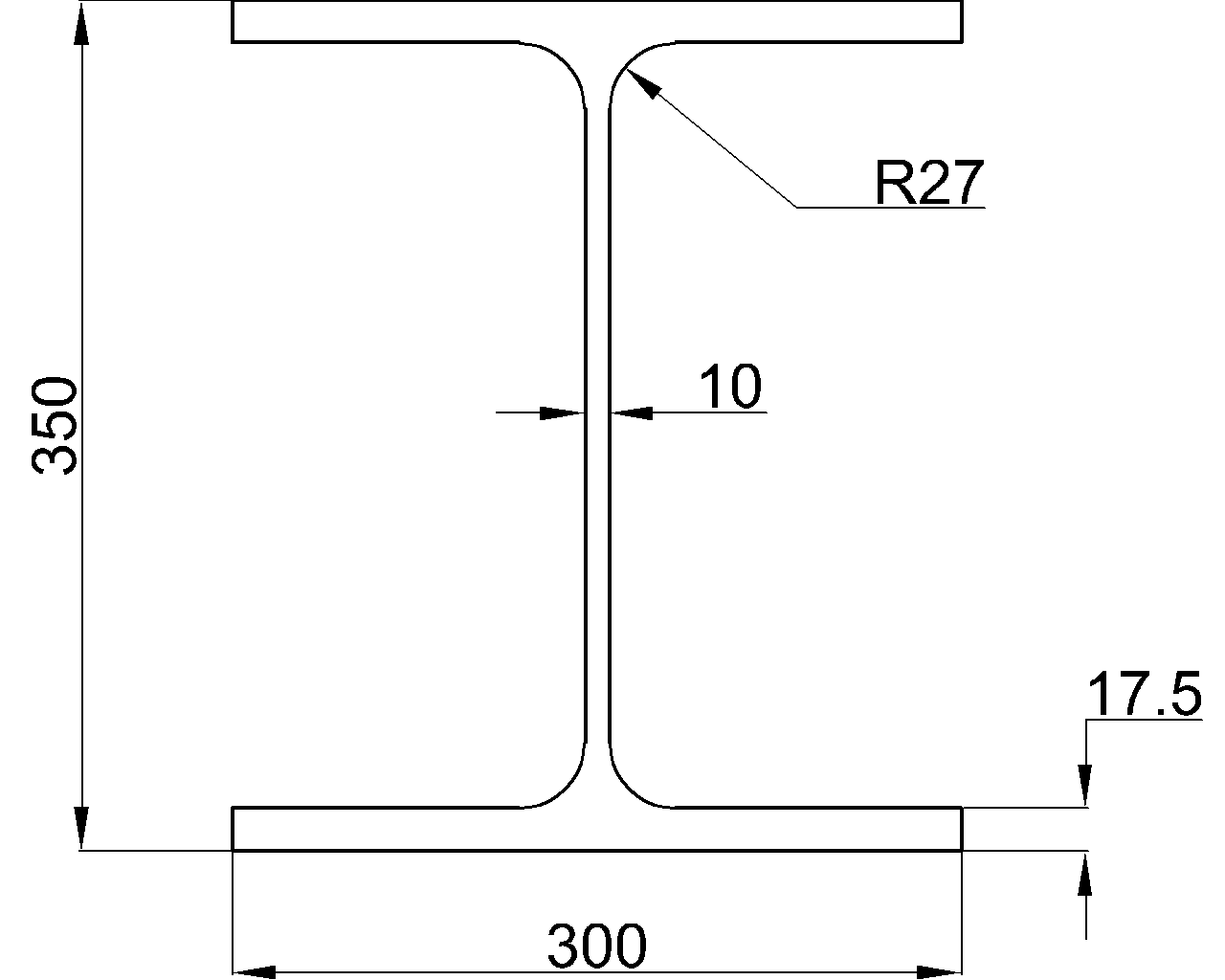

Dimension : 350x300x10x17.5
Depth : 350 mm
Width : 300 mm
Web Thickness : 10 mm
Flange Thickness : 17.5 mm
Root Fillet Radius : 27 mm
Sectional Area : 142.8 cm²
Unit Weight : 112.1 kg/m
