Celsius 355 SHS 120x120x5

Celsius 355 SHS 120x120x5
Celsius 355 Square Hollow Sections
refer to : EN 10210-2:2006-04
the European standard that specifies tolerances, dimensions, and sectional properties for hot-finished structural hollow sections of non-alloy and fine grain steels. It supports EN 10210-1, which covers technical delivery conditions.

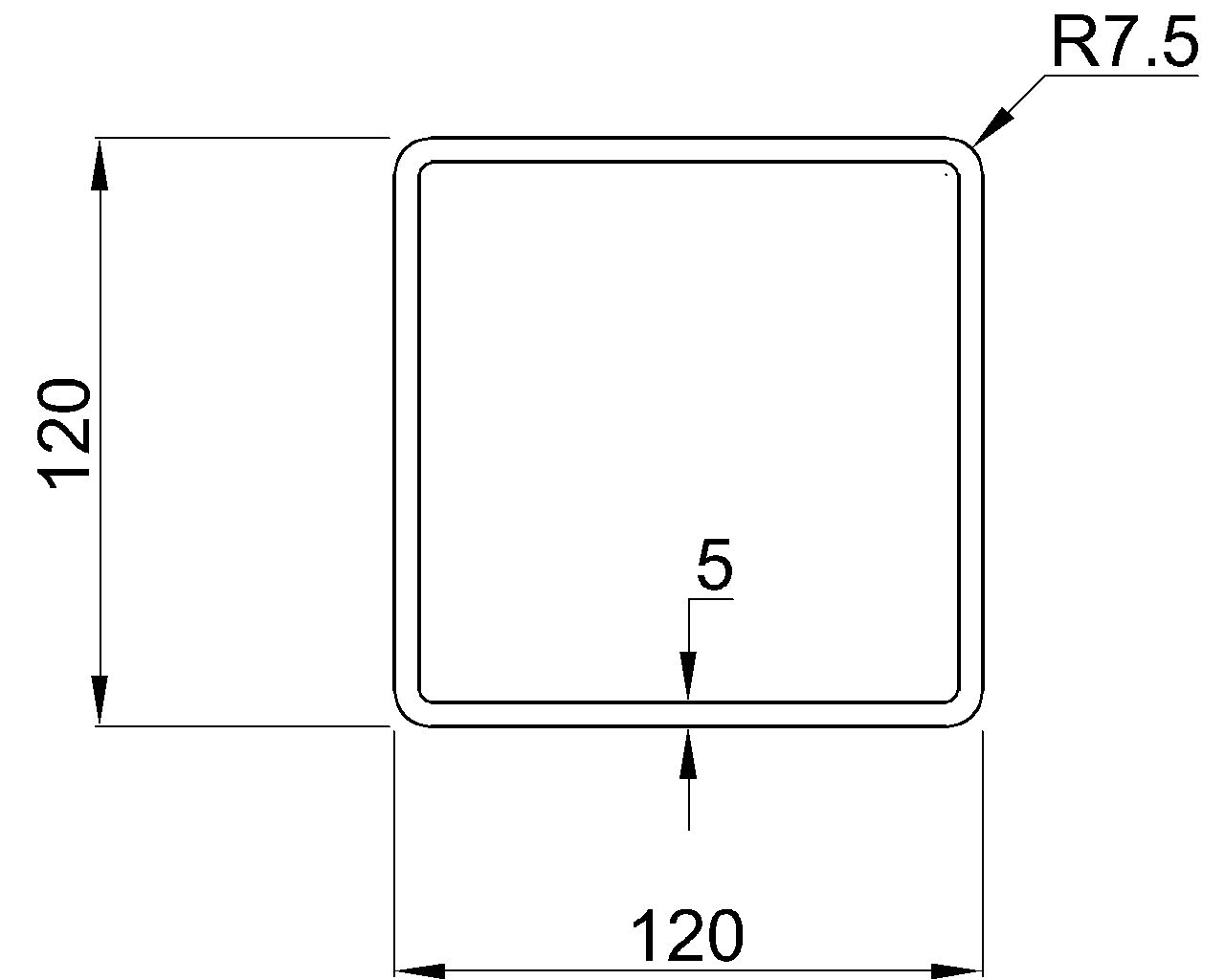

Dimension : 120x120x5
Depth : 120 mm
Width : 120 mm
Thickness : 5 mm
Outer Corner Radius : 7.5 mm
Inner Corner Radius : 5 mm
Sectional Area : 22.7 cm²
Unit Weight : 17.8 kg/m
