Celsius 355 SHS 100x100x8

Celsius 355 SHS 100x100x8
Celsius 355 Square Hollow Sections
refer to : EN 10210-2:2006-04
the European standard that specifies tolerances, dimensions, and sectional properties for hot-finished structural hollow sections of non-alloy and fine grain steels. It supports EN 10210-1, which covers technical delivery conditions.

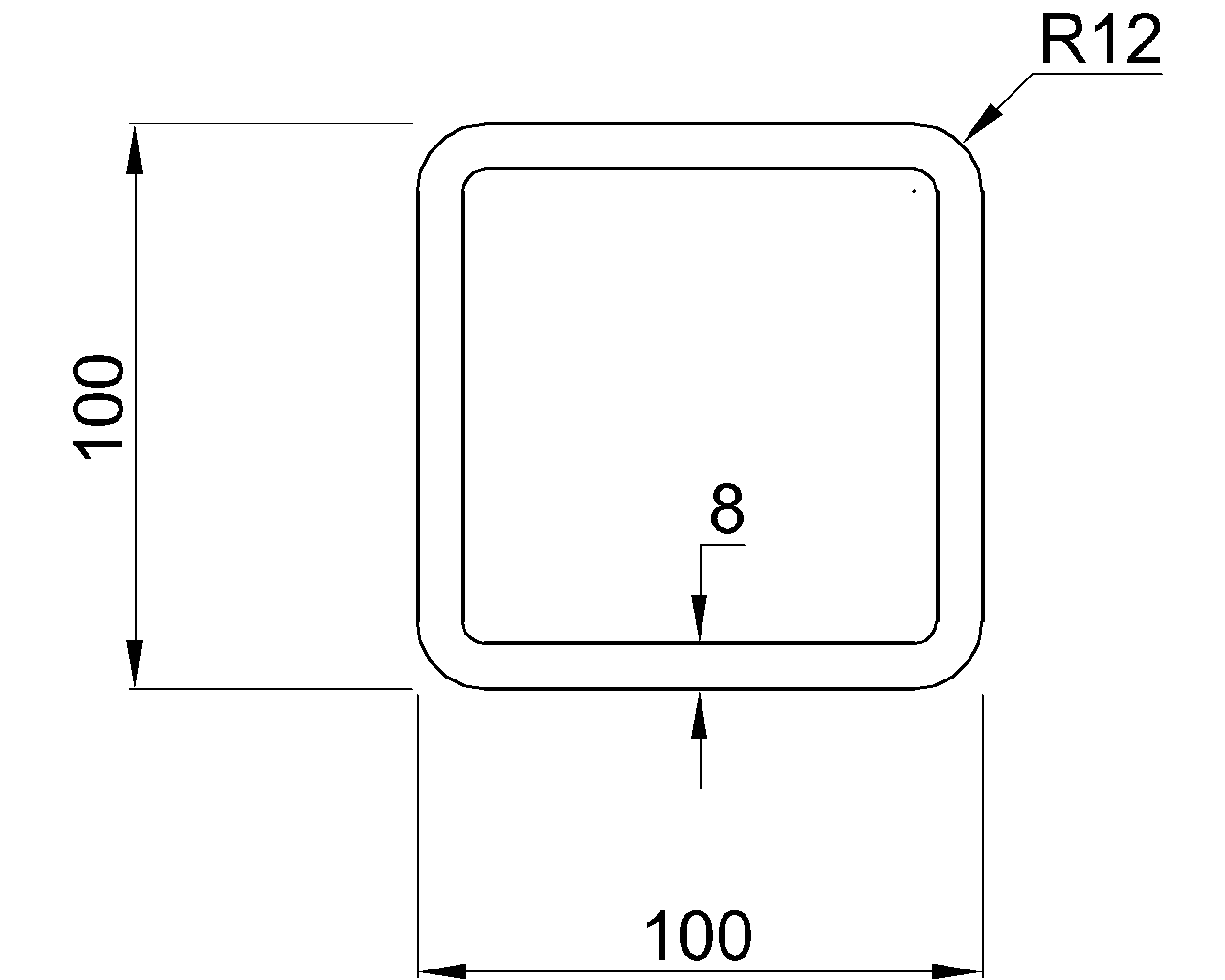

Dimension : 100x100x8
Depth : 100 mm
Width : 100 mm
Thickness : 8 mm
Outer Corner Radius : 12 mm
Inner Corner Radius : 8 mm
Sectional Area : 28.8 cm²
Unit Weight : 22.6 kg/m
