Category: IPN Beam
I-profile Normal
-

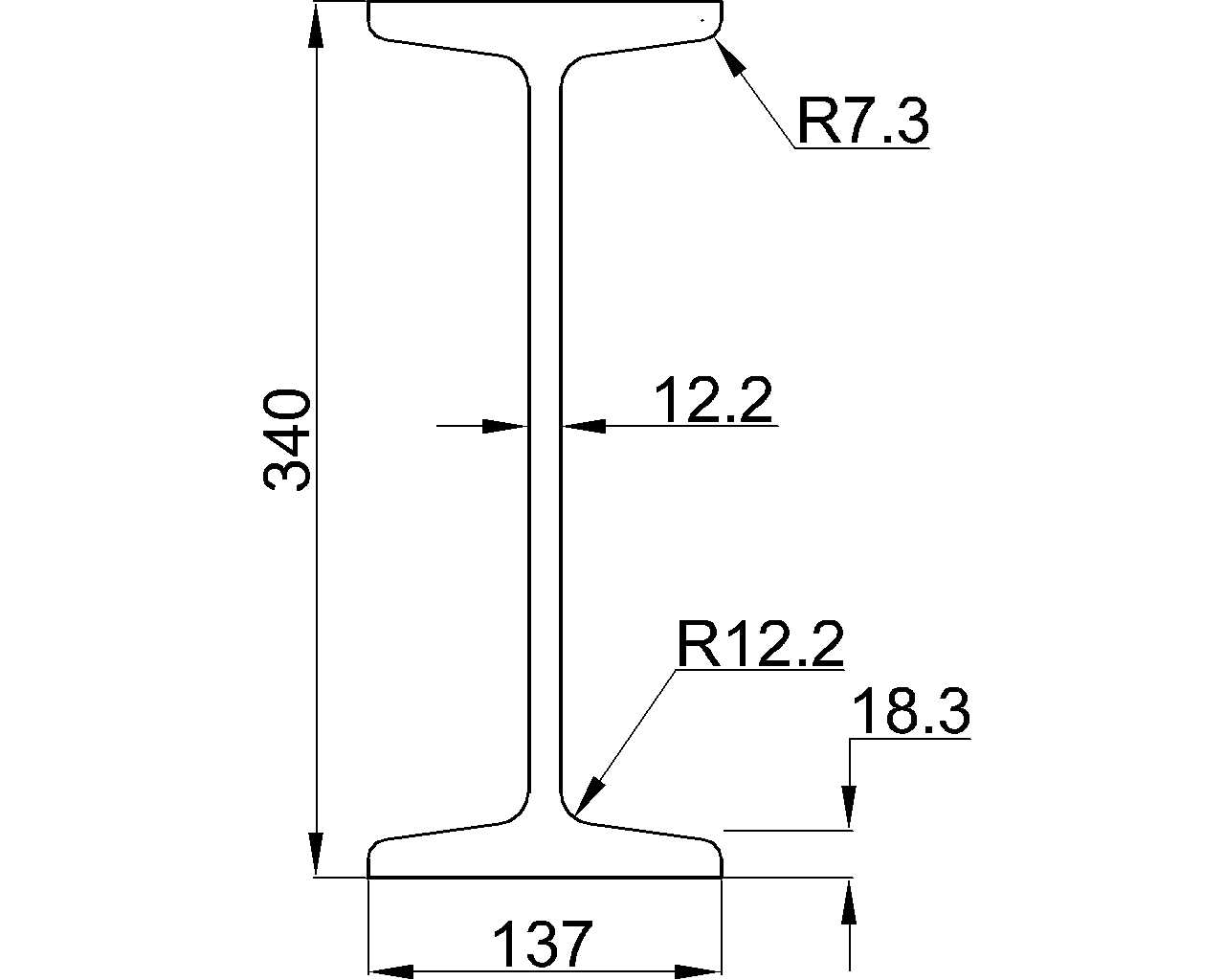

IPN 340
IPN 340 Taper Flange I Sections refer to : EN 10365:2017 a European standard that defines the dimensions, tolerances, and sectional properties for hot-rolled steel channels, I-beams, and H-beams used in construction and engineering. It ensures uniformity and compatibility across European structural steel products. Dimension : 340x137x12.2×18.3 Depth : 340 mm Width : 137 mm…
Written by
-

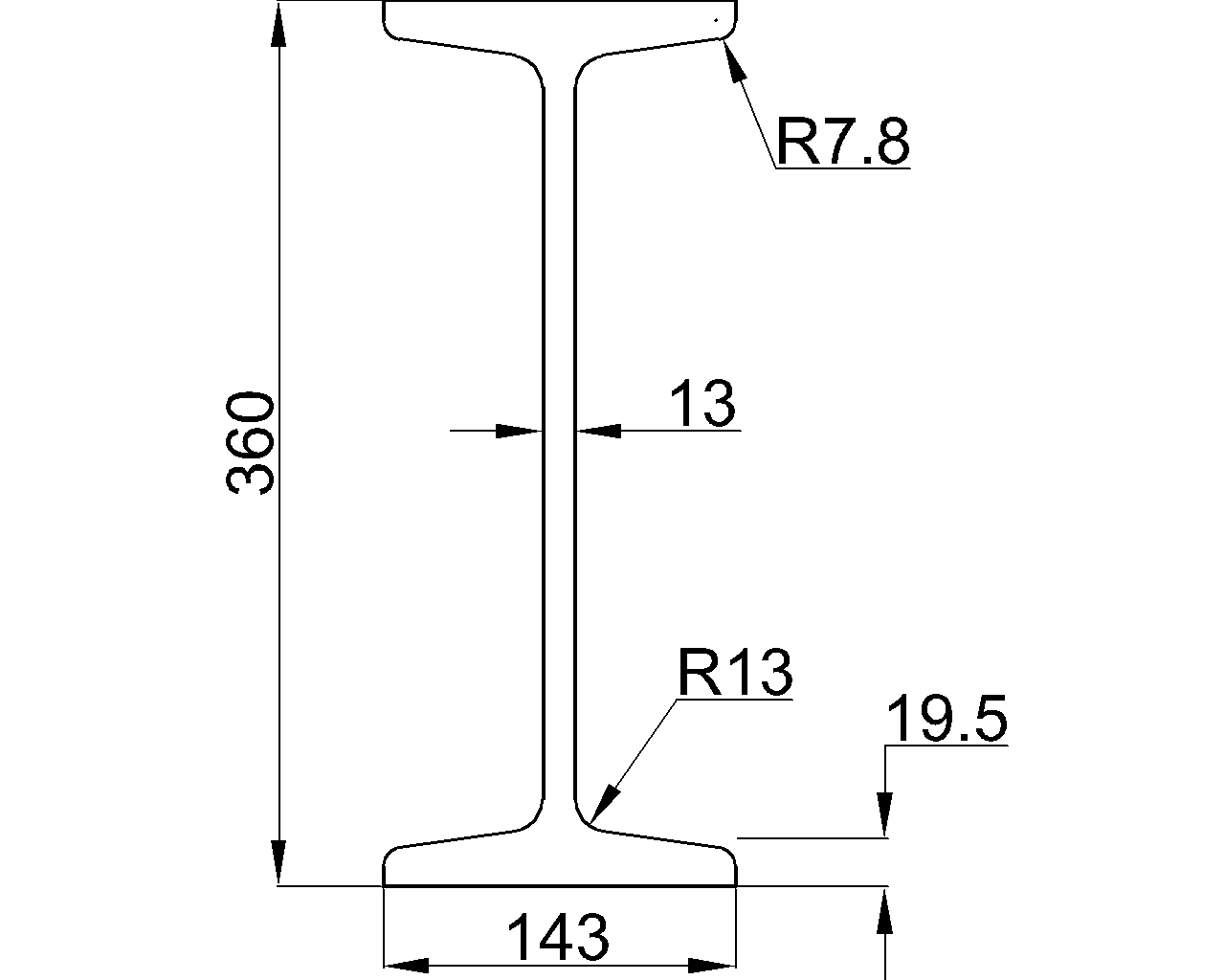

IPN 360
IPN 360 Taper Flange I Sections refer to : EN 10365:2017 a European standard that defines the dimensions, tolerances, and sectional properties for hot-rolled steel channels, I-beams, and H-beams used in construction and engineering. It ensures uniformity and compatibility across European structural steel products. Dimension : 360x143x13x19.5 Depth : 360 mm Width : 143 mm…
Written by
-

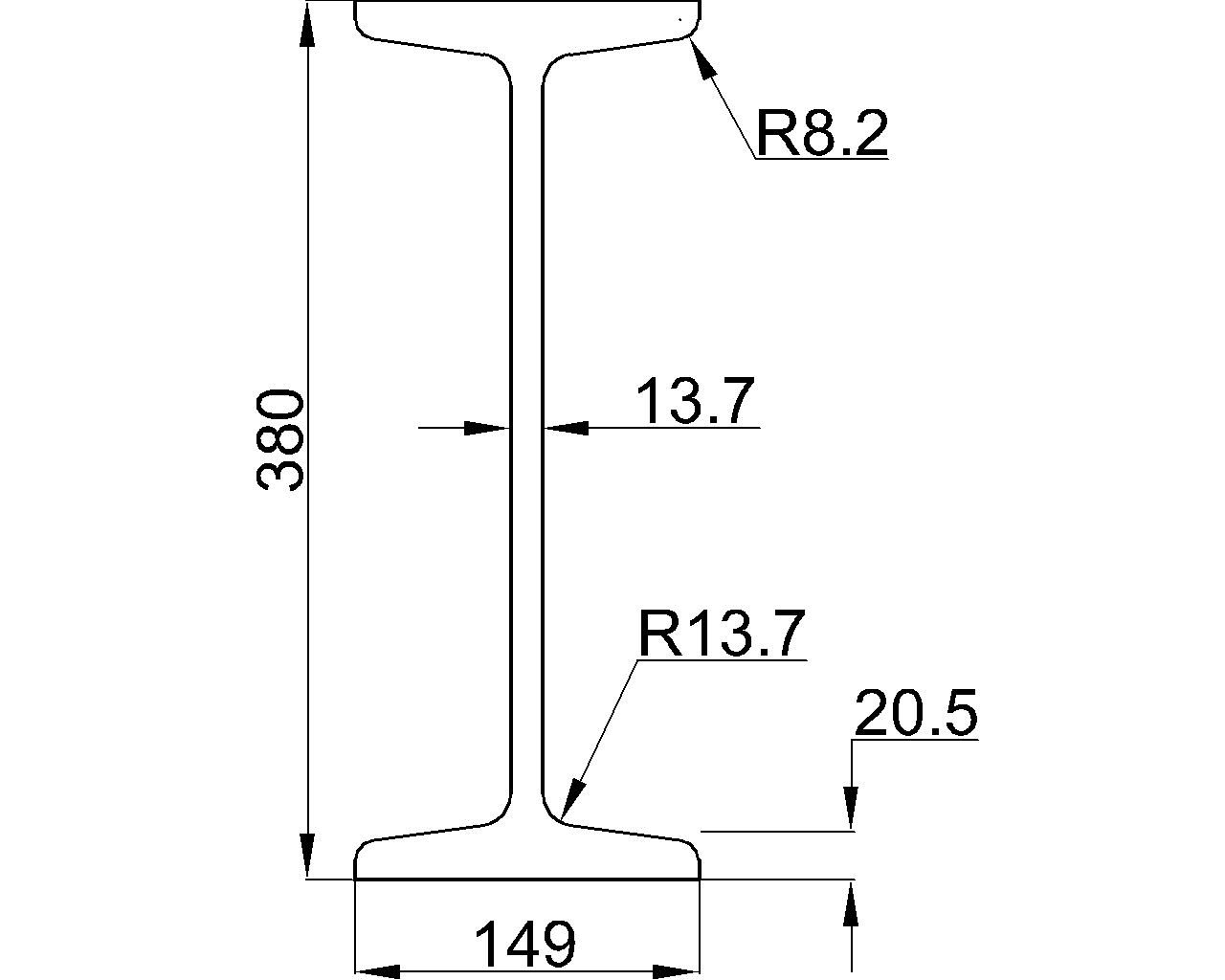

IPN 380
IPN 380 Taper Flange I Sections refer to : EN 10365:2017 a European standard that defines the dimensions, tolerances, and sectional properties for hot-rolled steel channels, I-beams, and H-beams used in construction and engineering. It ensures uniformity and compatibility across European structural steel products. Dimension : 380x149x13.7×20.5 Depth : 380 mm Width : 149 mm…
Written by
-

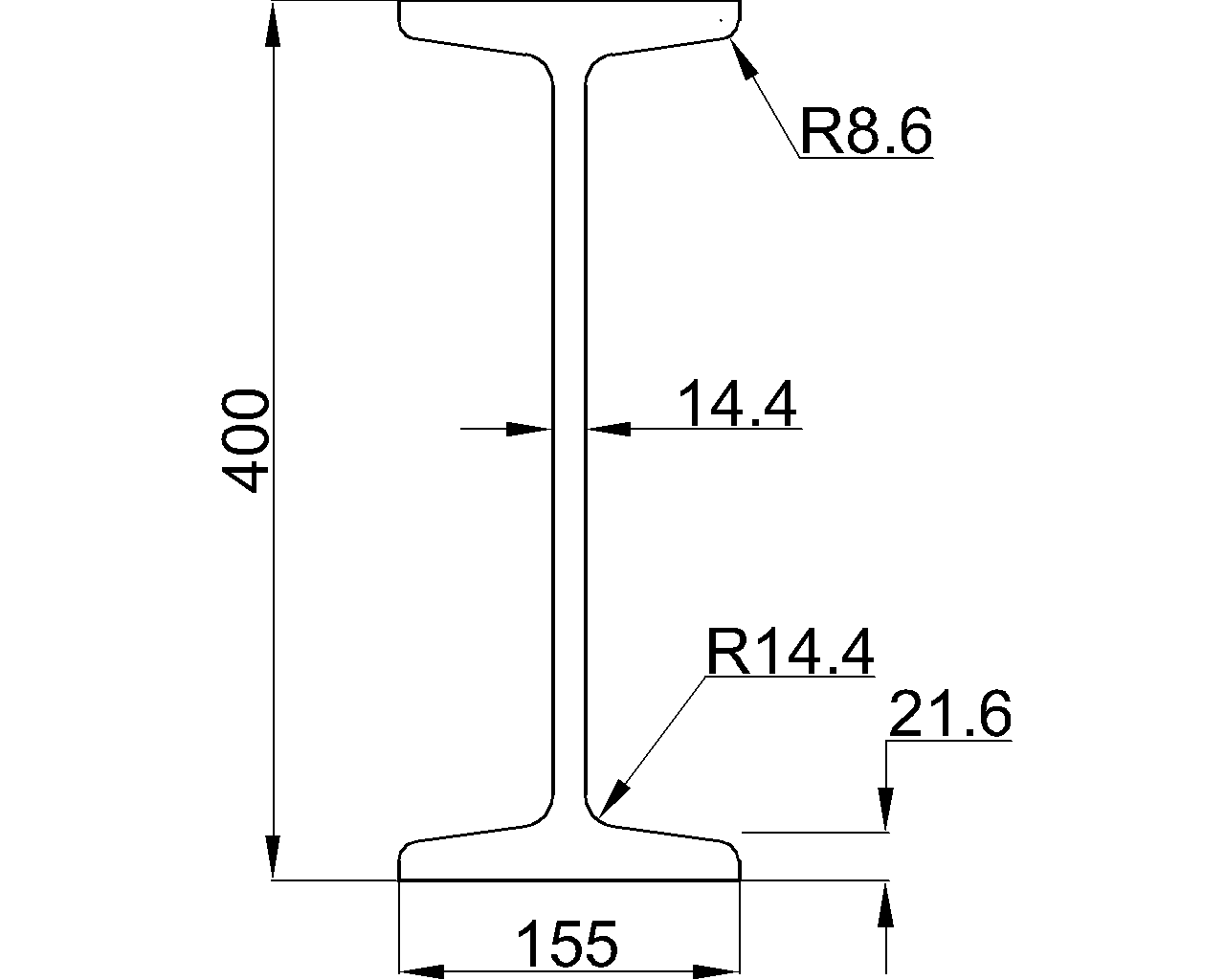

IPN 400
IPN 400 Taper Flange I Sections refer to : EN 10365:2017 a European standard that defines the dimensions, tolerances, and sectional properties for hot-rolled steel channels, I-beams, and H-beams used in construction and engineering. It ensures uniformity and compatibility across European structural steel products. Dimension : 400x155x14.4×21.6 Depth : 400 mm Width : 155 mm…
Written by
-

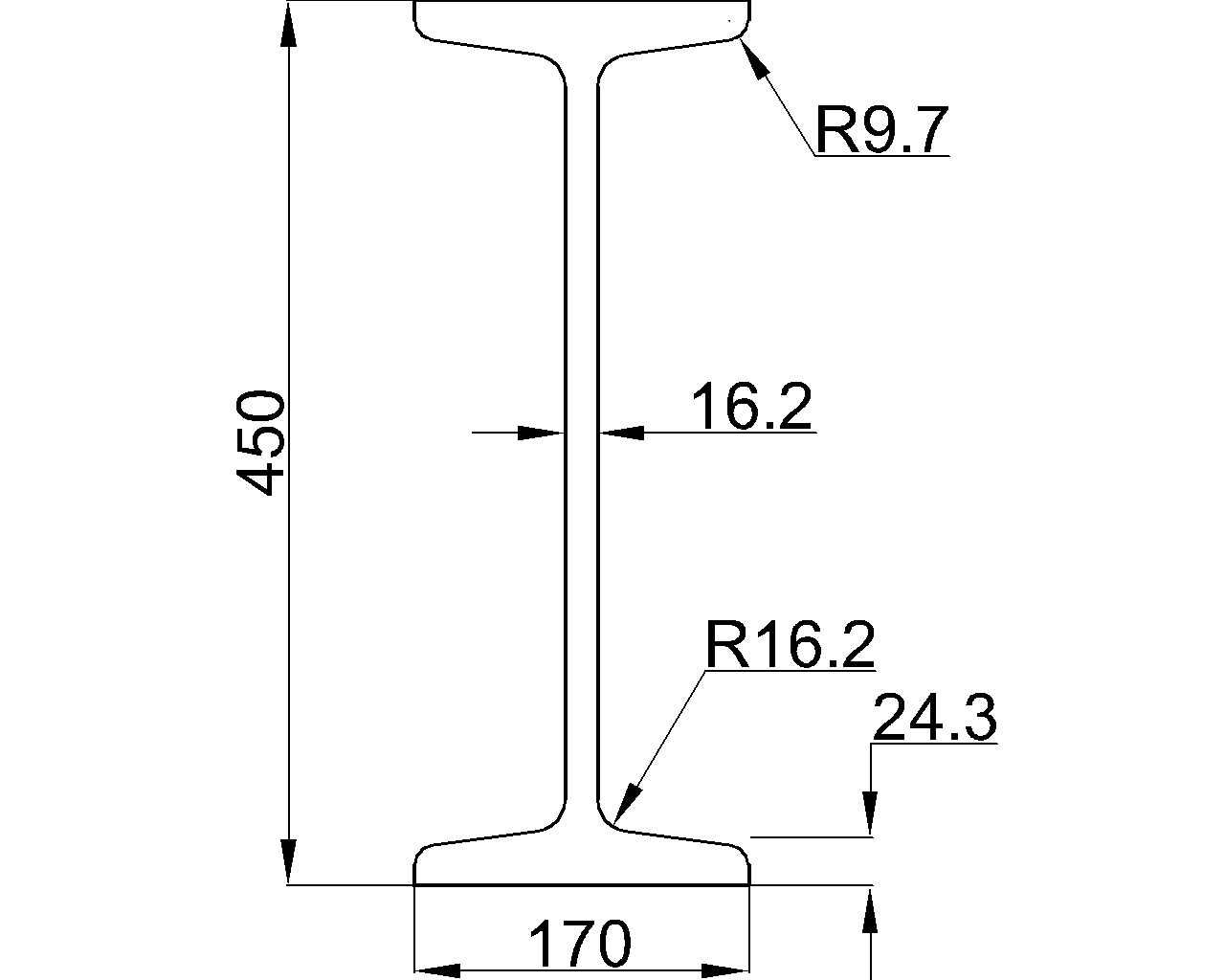

IPN 450
IPN 450 Taper Flange I Sections refer to : EN 10365:2017 a European standard that defines the dimensions, tolerances, and sectional properties for hot-rolled steel channels, I-beams, and H-beams used in construction and engineering. It ensures uniformity and compatibility across European structural steel products. Dimension : 450x170x16.2×24.3 Depth : 450 mm Width : 170 mm…
Written by
-

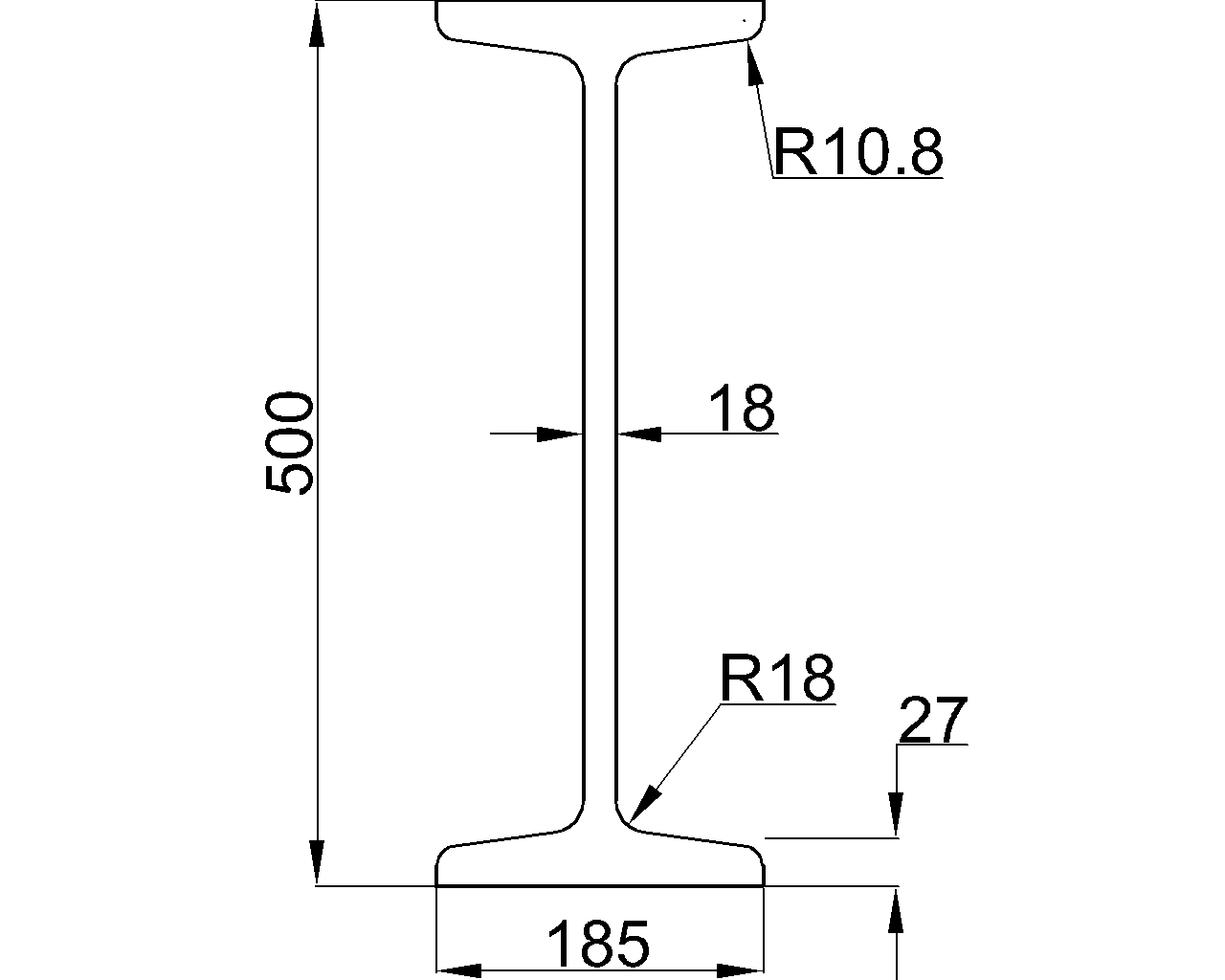

IPN 500
IPN 500 Taper Flange I Sections refer to : EN 10365:2017 a European standard that defines the dimensions, tolerances, and sectional properties for hot-rolled steel channels, I-beams, and H-beams used in construction and engineering. It ensures uniformity and compatibility across European structural steel products. Dimension : 500x185x18x27 Depth : 500 mm Width : 185 mm…
Written by
-

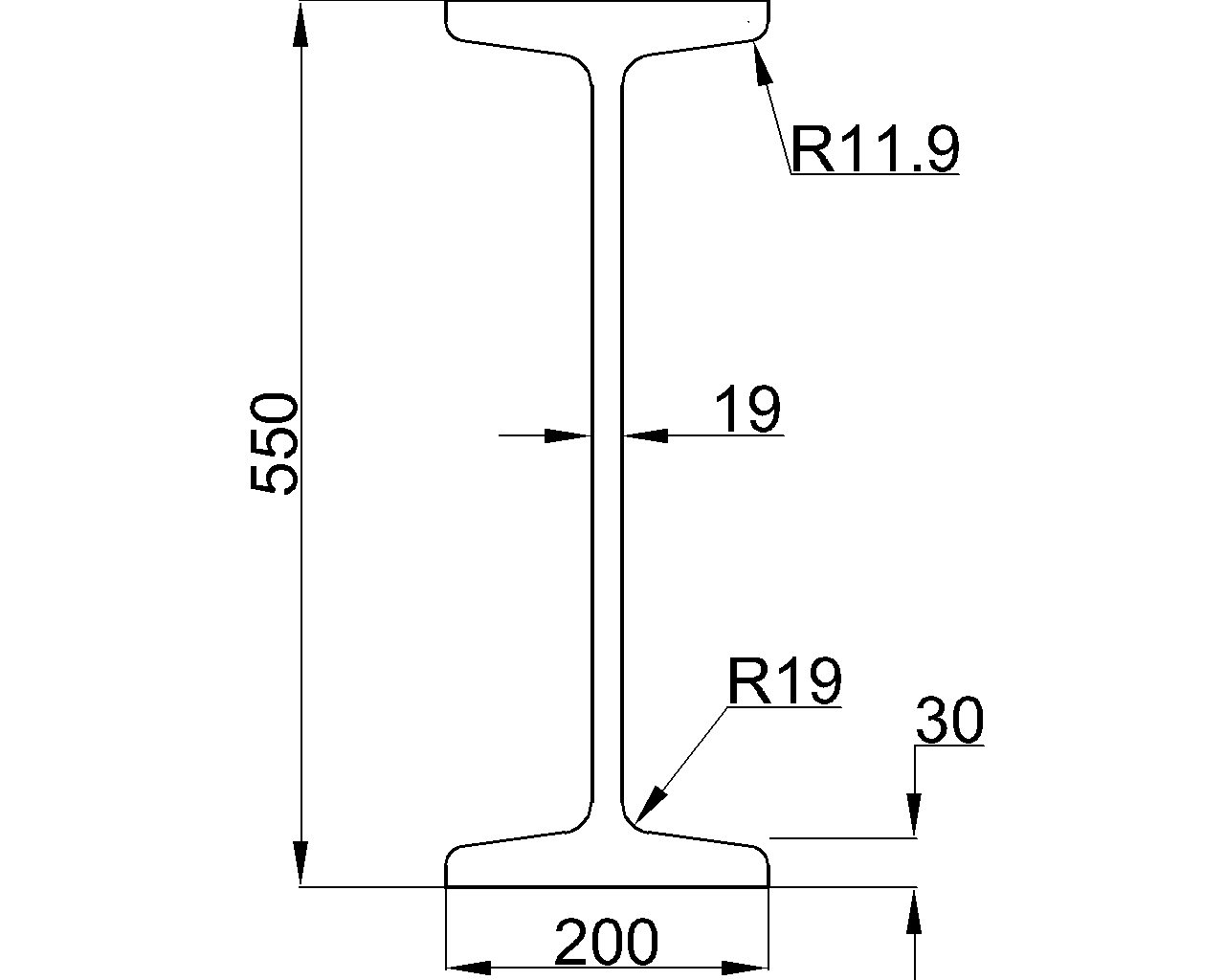

IPN 550
IPN 550 Taper Flange I Sections refer to : EN 10365:2017 a European standard that defines the dimensions, tolerances, and sectional properties for hot-rolled steel channels, I-beams, and H-beams used in construction and engineering. It ensures uniformity and compatibility across European structural steel products. Dimension : 550x200x19x30 Depth : 550 mm Width : 200 mm…
Written by
-
IPN 600
IPN 600 Taper Flange I Sections refer to : EN 10365:2017 a European standard that defines the dimensions, tolerances, and sectional properties for hot-rolled steel channels, I-beams, and H-beams used in construction and engineering. It ensures uniformity and compatibility across European structural steel products. Dimension : 600x215x21.6×32.4 Depth : 600 mm Width : 215 mm…
Written by
-

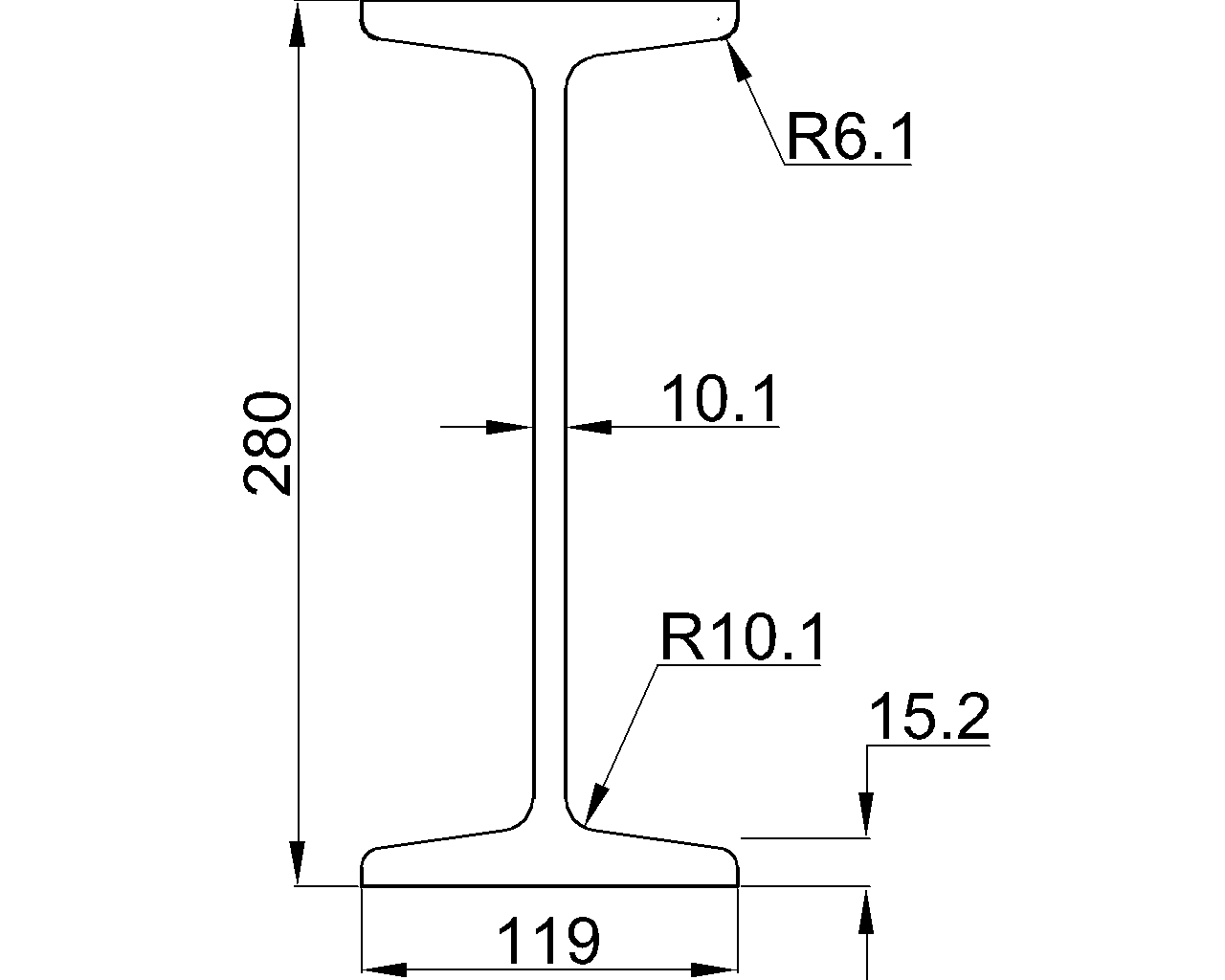

IPN 280
IPN 280 Taper Flange I Sections refer to : EN 10365:2017 a European standard that defines the dimensions, tolerances, and sectional properties for hot-rolled steel channels, I-beams, and H-beams used in construction and engineering. It ensures uniformity and compatibility across European structural steel products. Dimension : 280x119x10.1×15.2 Depth : 280 mm Width : 119 mm…
Written by
